L6712QTR

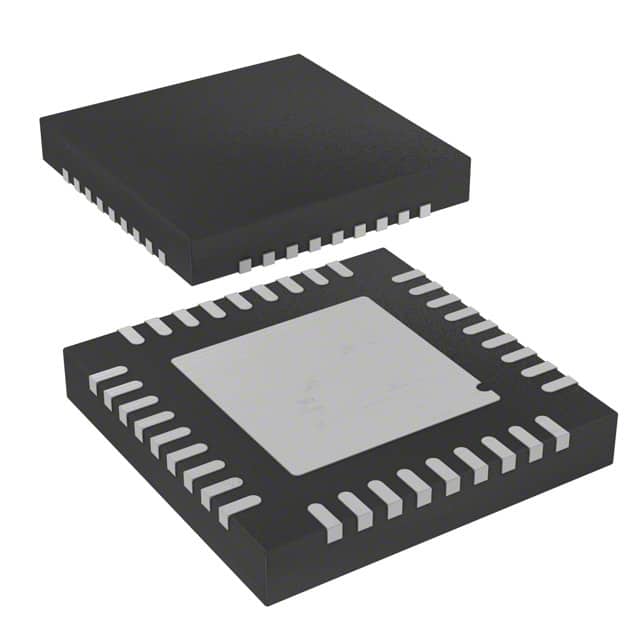

IC REG CTRLR BUCK 36VFQFPNManufacturer: STMicroelectronics
Categories: DC DC Switching Controllers
Quality Control: Learn More
STMicroelectronics L6712QTR is a high-performance, dual-output, synchronous buck controller designed for efficient step-down DC-DC conversion. This device operates with a switching frequency of 150kHz and features a maximum duty cycle of 80%. The L6712QTR supports advanced control features including frequency and phase control, along with a Power Good output indicator. Its topology is synchronous buck, utilizing transistor driver outputs and supporting two phases. The input voltage range is 7.5V to 15V.
This controller is packaged in a 36-VFQFPN (6x6) with an exposed pad, suitable for surface mounting. It operates across a temperature range of -40°C to 125°C (TJ). The L6712QTR is commonly employed in power supply applications for computing, consumer electronics, and industrial systems requiring precise voltage regulation. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-VFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 150kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 15V |
| Supplier Device Package | 36-VFQFPN (6x6) |
| Synchronous Rectifier | Yes |
| Control Features | Frequency Control, Phase Control, Power Good |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 80% |
| Clock Sync | No |
| Number of Outputs | 2 |
