L6712Q
IC REG CTRLR BUCK 36VFQFPNManufacturer: STMicroelectronics
Categories: DC DC Switching Controllers
Quality Control: Learn More

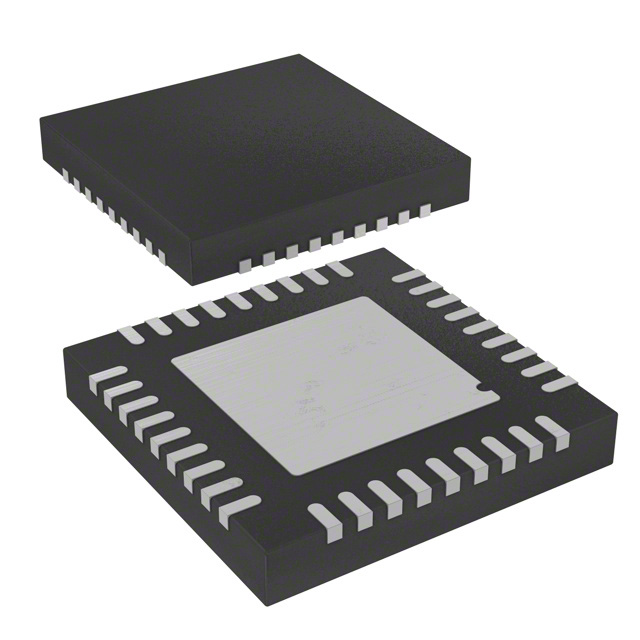

STMicroelectronics L6712Q is a dual-output, synchronous buck controller designed for efficient step-down DC-DC conversion. This 36-VFQFPN (6x6) packaged device operates with a switching frequency of 150kHz and a maximum duty cycle of 80%. Featuring frequency and phase control, along with a Power Good output, it provides robust regulation. The L6712Q supports a wide input voltage range of 7.5V to 15V and is suitable for applications requiring positive output voltage. Its surface mount design and 36-pin package facilitate integration into complex board layouts. Industries benefiting from this component include automotive, industrial automation, and consumer electronics, where precise power management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-VFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 150kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 15V |
| Supplier Device Package | 36-VFQFPN (6x6) |
| Synchronous Rectifier | Yes |
| Control Features | Frequency Control, Phase Control, Power Good |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 80% |
| Clock Sync | No |
| Number of Outputs | 2 |
