SPDCPOE05
DC DC CONVERTER 5V 10WManufacturer: STMicroelectronics
Categories: DC DC Converters
Quality Control: Learn More

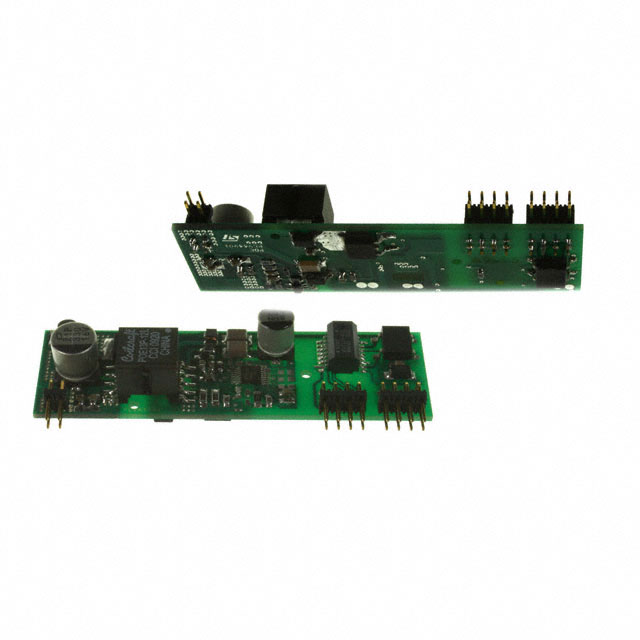

STMicroelectronics SPDCPOE05 is an isolated PoE module DC-DC converter delivering a 5V output at 2A for a 10W power rating. This component operates across a wide input voltage range of 38.5V to 60V, typical for Power over Ethernet applications. It features a robust 1.5 kV isolation voltage and includes essential protection mechanisms such as short-circuit protection (SCP) and undervoltage lockout (UVLO). With an efficiency of 80% and a single output configuration, the SPDCPOE05 is designed for through-hole mounting and measures 86.0mm x 24.2mm x 17.0mm. This module is suitable for ITE (Commercial) applications and operates within a temperature range of -40°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP, UVLO |
| Packaging | Bulk |
| Package / Case | Module |
| Size / Dimension | 3.39"" L x 0.95"" W x 0.67"" H (86.0mm x 24.2mm x 17.0mm) |
| Mounting Type | Through Hole |
| Type | Isolated PoE Module |
| Operating Temperature | -40°C ~ 70°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 60V |
| Efficiency | 80% |
| Current - Output (Max) | 2A |
| Voltage - Input (Min) | 38.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Power (Watts) | 10 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.5 kV |
Request a Quote
