STCD2400F35F
IC CLK BUF 1:4 52MHZ 16FLIPCHIPManufacturer: STMicroelectronics
Categories: Clock Buffers, Drivers
Quality Control: Learn More
STMicroelectronics STCD2400F35F is a versatile fanout buffer, designed for clock distribution applications requiring precise timing and signal integrity. This single-circuit device offers a 1:4 output ratio, capable of distributing a clock signal up to 52 MHz. The STCD2400F35F operates from a wide supply voltage range of 2.5V to 5.1V, making it suitable for diverse system architectures. Its 16-WFBGA, WLCSP package, also known as 16-FlipChip (1.6x1.6), facilitates efficient board space utilization in high-density designs. The component is surface-mountable and supplied on tape and reel. This clock buffer finds utility in applications such as telecommunications, computing, and consumer electronics where reliable clock signal management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

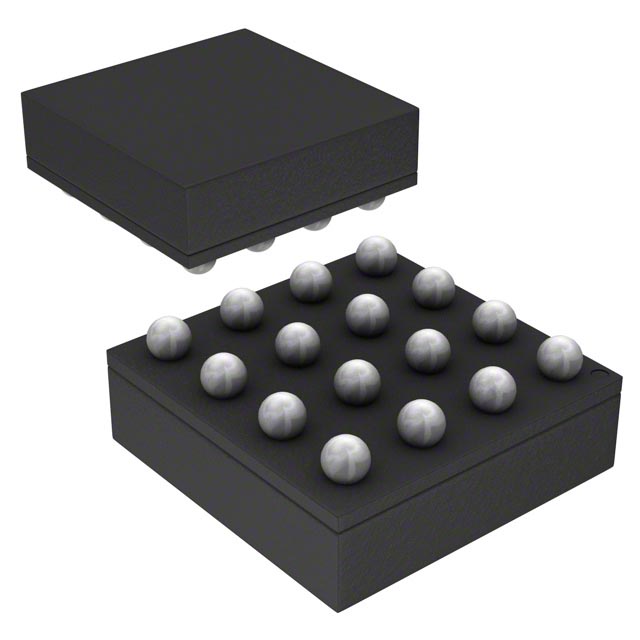

| Package / Case | 16-WFBGA, WLCSP |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | Clock |
| Type | Fanout Buffer (Distribution) |
| Input | Clock |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 5.1V |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 16-FlipChip (1.6x1.6) |
| Frequency - Max | 52 MHz |
