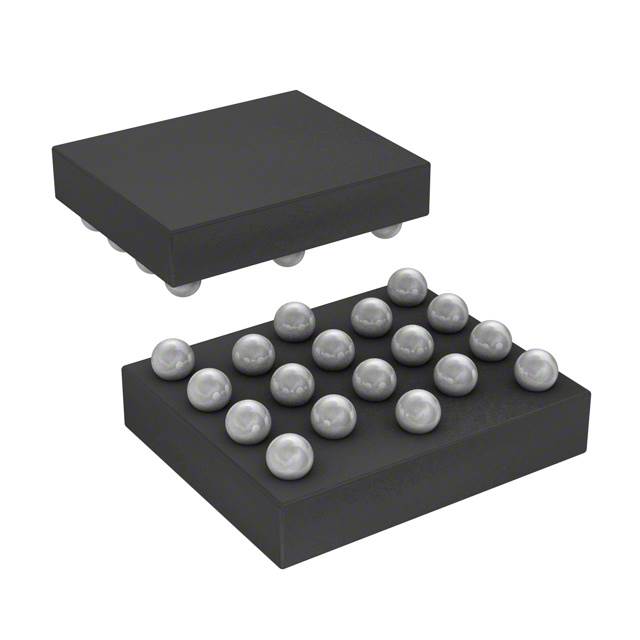

TS4855EIJT
IC AMP AB MONO 1.1W 18FLIPCHIPManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
STMicroelectronics TS4855EIJT is a Class AB mono audio amplifier with stereo headphone output, delivering 1.1W into an 8-ohm load and 100mW into 32-ohm stereo headphones. This device features a single channel (mono) output and supports stereo headphone output, making it suitable for applications requiring both speaker and headphone functionality. Key features include built-in depop, mute, standby, and thermal protection circuits, along with SPI and volume control for flexible system integration. The amplifier operates from a 3V to 5.5V supply range and is housed in an 18-FlipChip package, a type of 18-UFBGA, FCBGA, designed for surface mounting. Its operating temperature range is -40°C to 85°C. The TS4855EIJT is commonly utilized in portable electronics, audio systems, and communication devices. It is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Mute, SPI, Standby, Thermal Protection, Volume Control |
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-UFBGA, FCBGA |
| Output Type | 1-Channel (Mono) with Stereo Headphones |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 5.5V |
| Max Output Power x Channels @ Load | 1.1W x 1 @ 8Ohm; 100mW x 2 @ 32Ohm |
| Supplier Device Package | 18-FlipChip |
