TS2012EIJT
IC AMP D STEREO 2.5W 16FLIPCHIPManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
The STMicroelectronics TS2012EIJT is a highly efficient Class D stereo audio amplifier designed for compact applications. This device delivers 2.5W per channel into an 8-ohm load with a 5.5V supply, offering excellent power efficiency. Key features include integrated depop circuitry for smooth startup and shutdown, differential inputs for improved noise immunity, and comprehensive protection against short circuits and thermal overload. The amplifier operates over a wide temperature range of -40°C to 85°C. Its compact 16-FlipChip (2.1x2.1) package, supplied on tape and reel, is ideal for space-constrained designs in consumer electronics and portable audio systems. The device supports a supply voltage range of 2.5V to 5.5V and features a standby mode for reduced power consumption.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tape & Reel (TR) |

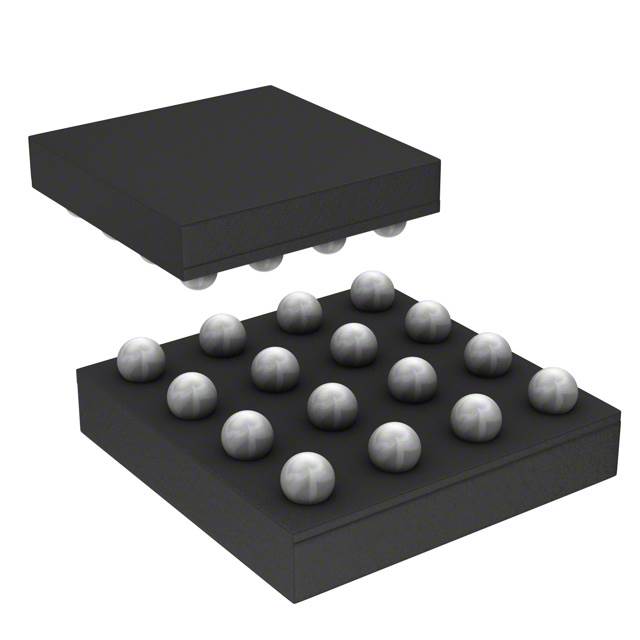

| Package / Case | 16-UFBGA, FCBGA |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Max Output Power x Channels @ Load | 2.5W x 1 @ 8Ohm |
| Supplier Device Package | 16-FlipChip (2.1x2.1) |
