TS2007IQT
IC AMP CLASS D MONO 2.8W 8DFNManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More

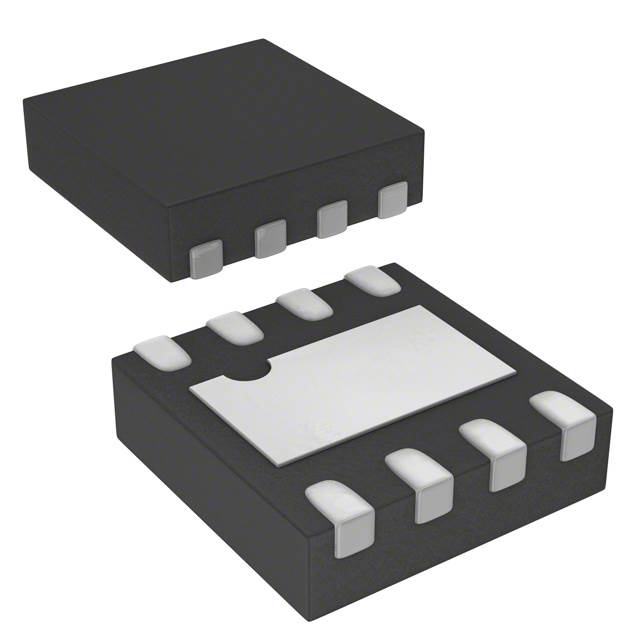

STMicroelectronics TS2007IQT is a high-efficiency Class D mono audio amplifier IC. This component is housed in an 8-DFN (3x3) package with an exposed pad for enhanced thermal performance. It delivers up to 2.8W of output power into a 4-ohm load. The TS2007IQT features include differential inputs for improved noise immunity, a standby mode for power conservation, and robust thermal protection. It also incorporates a depop feature to minimize audible transients during power-up and power-down. The device operates over a supply voltage range of 2.4V to 5.5V and is designed for surface-mount applications. This amplifier is suitable for use in portable audio devices, consumer electronics, and automotive audio systems. The component is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Standby, Thermal Protection |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UDFN Exposed Pad |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.4V ~ 5.5V |
| Max Output Power x Channels @ Load | 2.8W x 1 @ 4Ohm |
| Supplier Device Package | 8-DFN (3x3) |
