TDA7575BPD
IC AMP AB MONO/STER 150W PWRSO36Manufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
STMicroelectronics TDA7575BPD is a Class AB audio amplifier IC designed for high-power audio applications. This component offers flexible output configurations, supporting both 1-channel (mono) or 2-channel (stereo) operation. It delivers a maximum output power of 150W into a 1-ohm load in mono mode, or 75W per channel into a 2-ohm load in stereo mode. Key features include differential inputs for enhanced noise immunity, I2C interface for control and configuration, mute functionality, and comprehensive protection against short-circuit and thermal events. The device also incorporates a standby mode to reduce power consumption. The TDA7575BPD is housed in a PowerSO-36 package with an exposed top pad for improved thermal dissipation, suitable for surface mounting. Its operating junction temperature range is -55°C to 150°C. This amplifier is commonly utilized in automotive audio systems and high-fidelity sound equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |

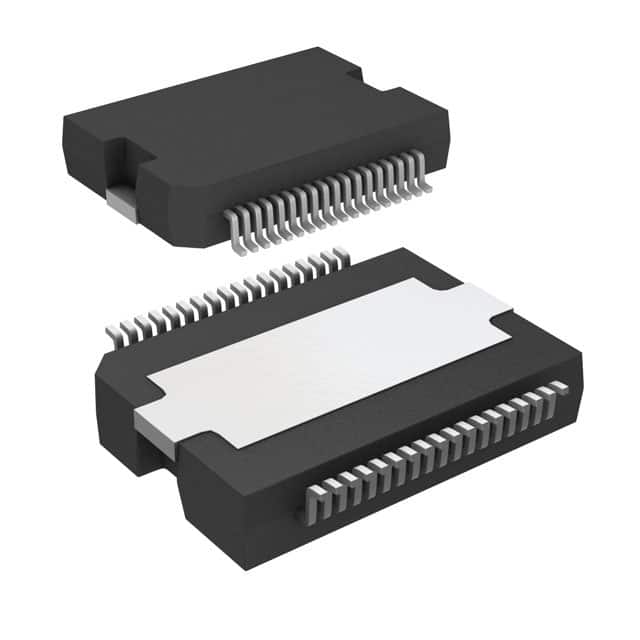

| Package / Case | PowerSO-36 Exposed Top Pad |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 8V ~ 18V |
| Max Output Power x Channels @ Load | 150W x 1 @ 1Ohm; 75W x 2 @ 2Ohm |
| Supplier Device Package | PowerSO-36 |
