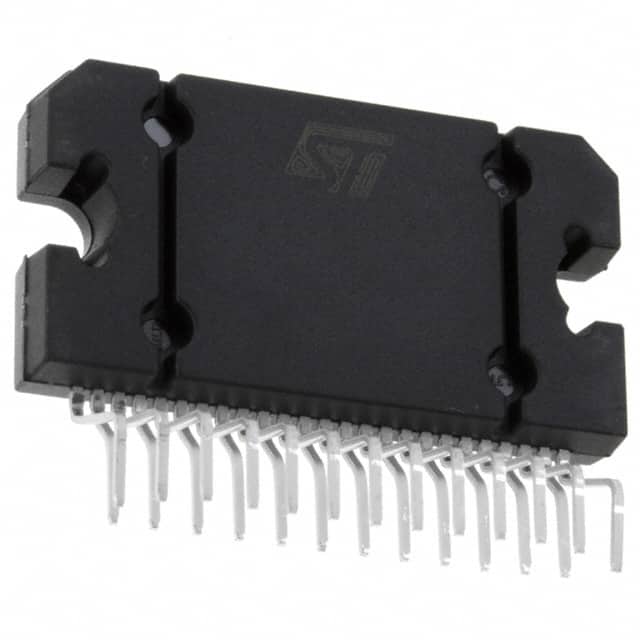

TDA7564
IC AMP AB QUAD 72W 25FLEXIWATTManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
The STMicroelectronics TDA7564 is a quad-channel Class AB audio amplifier IC designed for high-fidelity audio applications. This component delivers up to 72W per channel into a 2-ohm load, making it suitable for demanding automotive and professional audio systems. Its 25-Flexiwatt package with formed leads facilitates through-hole mounting. Key features include I2C control for mute and standby functions, alongside integrated short-circuit and thermal protection for robust operation. The operating junction temperature range is -55°C to 150°C. This device is commonly employed in automotive infotainment systems and high-power audio amplification solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | I2C, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | 25-Flexiwatt, Formed Leads |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 8V ~ 18V |
| Max Output Power x Channels @ Load | 72W x 4 @ 2Ohm |
| Supplier Device Package | 25-Flexiwatt (Vertical) |
