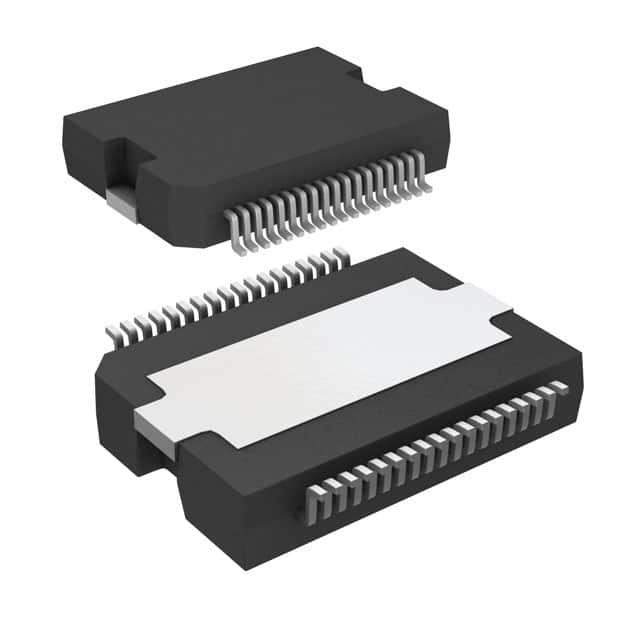

TDA7563BPD
IC AMP AB QUAD 75W POWERSO-36Manufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
STMicroelectronics TDA7563BPD is a quad-channel Class AB power amplifier IC housed in a PowerSO-36 exposed top pad package. This high-fidelity audio amplifier delivers up to 75W per channel into a 2-ohm load. Key features include I2C serial control for mute and standby functions, alongside comprehensive integrated protection against short-circuits and thermal events. Designed for demanding audio applications, it operates across an 8V to 18V supply voltage range and features a wide operating temperature range of -55°C to 150°C (TJ). This component is commonly utilized in automotive audio systems and high-performance consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | I2C, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | PowerSO-36 Exposed Top Pad |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 8V ~ 18V |
| Max Output Power x Channels @ Load | 75W x 4 @ 2Ohm |
| Supplier Device Package | PowerSO-36 |
