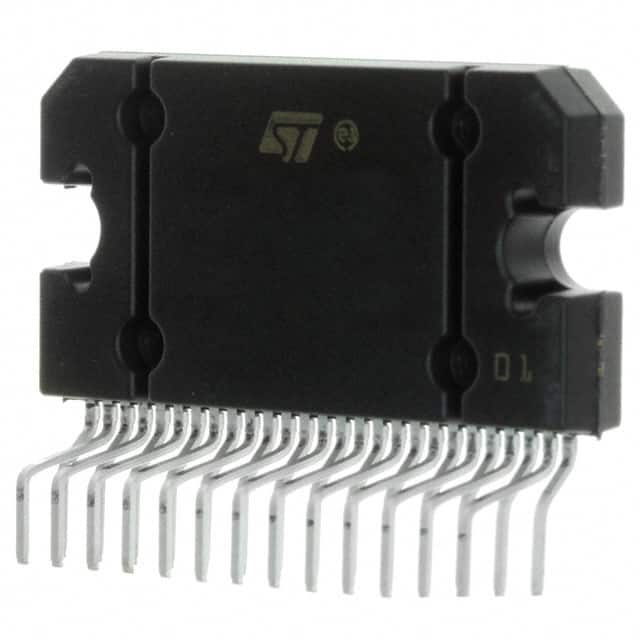

TDA7563ASM
IC AMP AB QUAD 75W 27FLEXIWATTManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
STMicroelectronics TDA7563ASM is a high-fidelity Class AB quad audio amplifier IC designed for demanding automotive audio applications. This surface-mount component, housed in a 27-Flexiwatt package with formed leads, delivers up to 75W per channel into a 2-ohm load, providing exceptional audio performance. Key features include I2C control for flexible configuration, mute functionality, and robust integrated protection circuits for short-circuit and thermal events, ensuring reliable operation. The TDA7563ASM also supports standby mode for power efficiency. Its wide operating temperature range of -55°C to 150°C junction temperature makes it suitable for stringent automotive environments. This device is commonly utilized in automotive infotainment systems and premium sound solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | I2C, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | 27-Flexiwatt, Formed Leads |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 8V ~ 18V |
| Max Output Power x Channels @ Load | 75W x 4 @ 2Ohm |
| Supplier Device Package | 27-Flexiwatt (SMD) |
