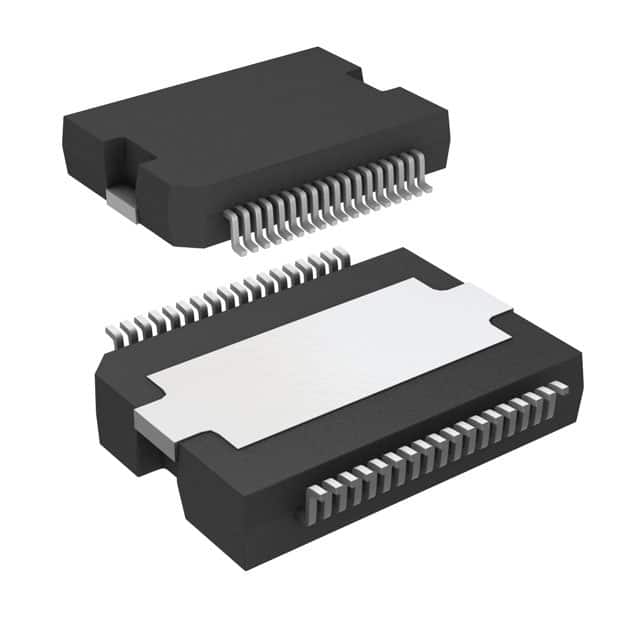

TDA7563APDTR
IC AMP AB QUAD 75W POWERSO-36Manufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
STMicroelectronics TDA7563APDTR is a high-fidelity quad-channel Class AB audio amplifier IC. This component is engineered for demanding automotive audio systems, delivering 75W per channel into a 2 Ohm load. The PowerSO-36 package with an exposed top pad facilitates efficient thermal management. Key features include I2C control for comprehensive functionality, mute capability, and robust integrated protection against short-circuit and thermal events. Its standby mode contributes to power efficiency. The TDA7563APDTR is suitable for applications requiring superior audio performance and reliability in automotive environments. It operates from an 8V to 18V supply voltage, with an extended junction temperature range of -55°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | I2C, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerSO-36 Exposed Top Pad |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 8V ~ 18V |
| Max Output Power x Channels @ Load | 75W x 4 @ 2Ohm |
| Supplier Device Package | PowerSO-36 |
