TDA7396
IC AMP AB MONO 65W 11MULTIWATTManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More

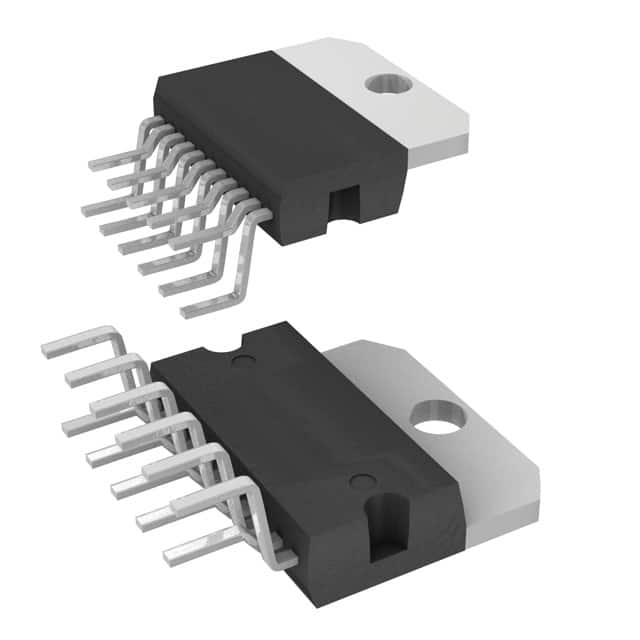

STMicroelectronics TDA7396 is a Class AB mono audio amplifier IC designed for high-fidelity sound reproduction. This component, housed in an 11-Multiwatt package, delivers a maximum output power of 65W into a 2-ohm load. Key features include differential inputs for improved noise immunity, integrated depop and mute functions, and comprehensive protection against short-circuits and thermal overload. The device operates within a supply voltage range of 8V to 18V and maintains functionality across an extended temperature range of -40°C to 150°C. Its through-hole mounting type and robust protection circuitry make it suitable for demanding applications in automotive audio systems and professional sound equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | Multiwatt-11 (Vertical, Bent and Staggered Leads) |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 8V ~ 18V |
| Max Output Power x Channels @ Load | 65W x 1 @ 2Ohm |
| Supplier Device Package | 11-Multiwatt |
