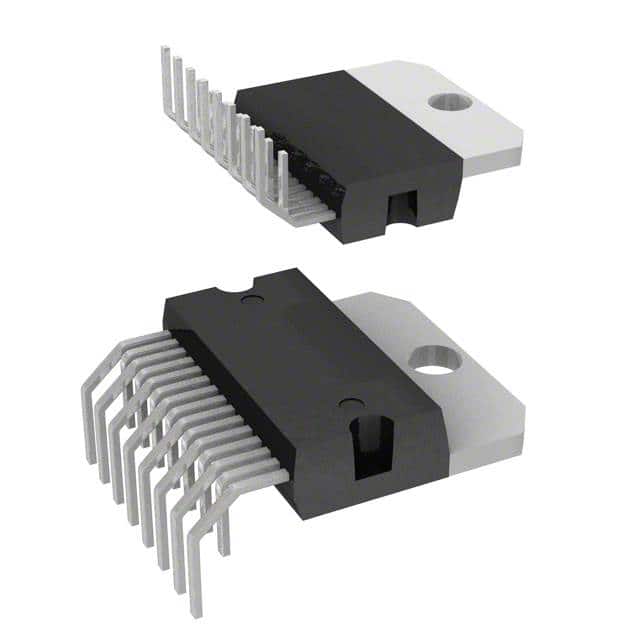

TDA7293HS
IC AMP AB MONO 100W 15MULTIWATTManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
STMicroelectronics TDA7293HS is a high-performance Class AB audio amplifier IC designed for mono applications. This device offers a robust 100W output into a 4-ohm load, making it suitable for demanding audio systems. Key features include differential inputs, mute functionality, and comprehensive protection against short-circuit and thermal events, ensuring reliable operation. The integrated depop circuitry minimizes turn-on/off thumps. It is housed in a 15-Multiwatt package with horizontal, bent, and staggered leads, facilitating through-hole mounting. The TDA7293HS operates across a supply voltage range of ±12V to ±50V and is rated for an ambient temperature of 0°C to 70°C. This component finds extensive use in professional audio equipment, sound reinforcement systems, and automotive audio applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | Multiwatt-15 (Horizontal, Bent and Staggered Leads) |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | ±12V ~ 50V |
| Max Output Power x Channels @ Load | 100W x 1 @ 4Ohm |
| Supplier Device Package | 15-Multiwatt |
