TDA2005R
IC AMP B MON/STER 22W 11MULTIWTTManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
STMicroelectronics TDA2005R is a Class B audio amplifier IC. This component supports both 1-channel (mono) and 2-channel (stereo) configurations, capable of delivering up to 22W into a 3.2 Ohm load in mono or 12W per channel into 2 Ohm loads in stereo. The TDA2005R features integrated short-circuit and thermal protection for enhanced reliability. Its operating temperature range is -40°C to 150°C (TJ). This versatile amplifier is suitable for applications in automotive audio systems and consumer electronics. The device is housed in an 11-Multiwatt package with through-hole mounting. Supply voltage ranges from 8V to 18V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Short-Circuit and Thermal Protection |
| Packaging | Tube |

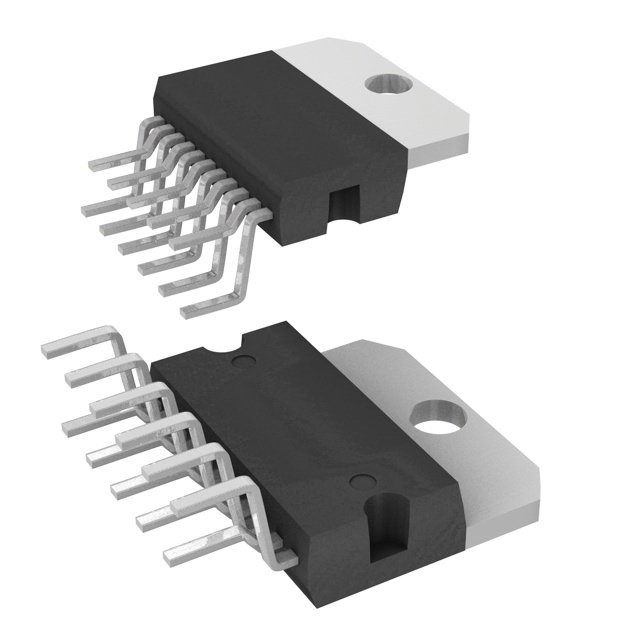

| Package / Case | Multiwatt-11 (Vertical, Bent and Staggered Leads) |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Mounting Type | Through Hole |
| Type | Class B |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 8V ~ 18V |
| Max Output Power x Channels @ Load | 22W x 1 @ 3.2Ohm; 12W x 2 @ 2Ohm |
| Supplier Device Package | 11-Multiwatt |
Request a Quote
