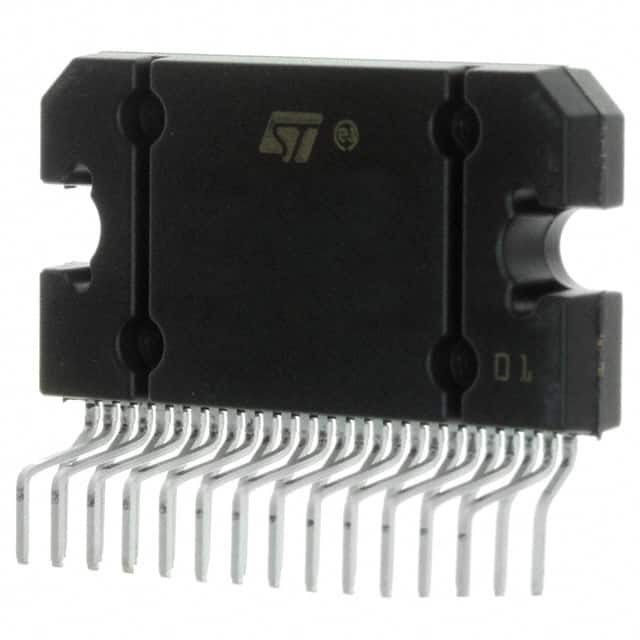

STPA003HSD-48X
IC AMP AB QUAD 85W 27FLEXIWATTManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More
STMicroelectronics STPA003HSD-48X is a quad-channel Class AB audio amplifier IC. This high-performance component delivers up to 85W per channel into a 2 Ohm load, making it suitable for demanding audio applications. Key features include integrated mute functionality, robust short-circuit and thermal protection, and a standby mode for power efficiency. The STPA003HSD-48X is housed in a 27-Flexiwatt (Vertical) package with formed leads, designed for through-hole mounting. Operating across a supply voltage range of 6V to 18V, this device is engineered for reliable performance within an ambient temperature range of -40°C to 105°C. This amplifier is commonly utilized in automotive audio systems and professional audio equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | 27-Flexiwatt, Formed Leads |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 6V ~ 18V |
| Max Output Power x Channels @ Load | 85W x 4 @ 2Ohm |
| Supplier Device Package | 27-Flexiwatt (Vertical) |
