FDA803U-KBX
1 X 45 W CLASS D DIGITAL INPUT AManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More

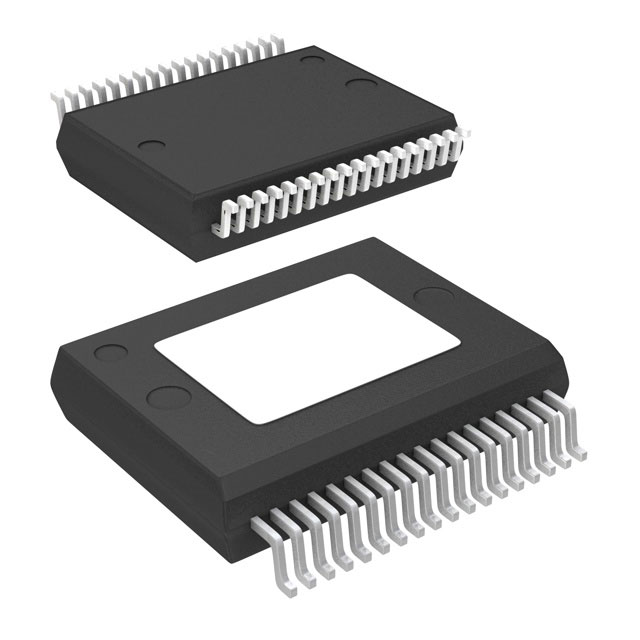

STMicroelectronics FDA803U-KBX is a 1-channel Class D audio amplifier IC. This device offers a maximum output power of 45W into a 2 Ohm load. Designed for automotive applications, it meets AEC-Q100 qualification standards and operates within an ambient temperature range of -40°C to 125°C. The amplifier supports a wide supply voltage range from 3.3V to 18V. Its output stage is a single channel, delivering mono audio amplification. The component is supplied in a PowerSSO-36 EPU package, requiring surface mounting. This highly efficient Class D architecture is suitable for demanding automotive audio systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 36-PowerFSOP (0.295"", 7.50mm Width) |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 3.3V ~ 18V |
| Max Output Power x Channels @ Load | 45W x 1 @ 2Ohm |
| Supplier Device Package | PowerSSO-36 EPU |
| Grade | Automotive |
| Qualification | AEC-Q100 |
