E-TDA7386
IC AMP AB QUAD 45W 25FLEXIWATTManufacturer: STMicroelectronics
Categories: Audio Amplifiers
Quality Control: Learn More

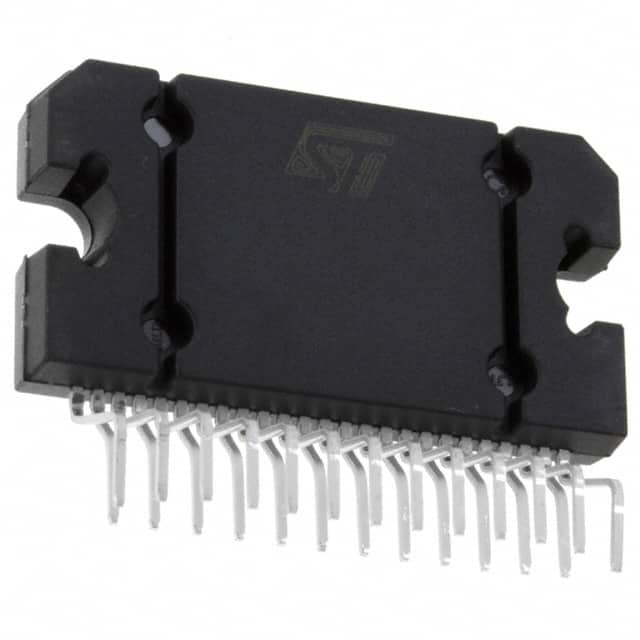

STMicroelectronics TDA7386 is a high-fidelity, quad-channel Class AB audio amplifier IC. This component is designed for demanding automotive audio applications, delivering up to 45W per channel into a 4-ohm load. The TDA7386 features integrated mute functionality for smooth audio transitions and comprehensive protection circuits, including short-circuit and thermal protection, ensuring robust operation. Its standby mode further enhances power efficiency. The amplifier IC utilizes a 25-Flexiwatt package with formed leads, suitable for through-hole mounting. Operating within a supply voltage range of 8V to 18V, it offers a wide operating temperature range of -40°C to 105°C. This device is commonly found in automotive infotainment systems and premium sound solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | 25-Flexiwatt, Formed Leads |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 8V ~ 18V |
| Max Output Power x Channels @ Load | 45W x 4 @ 4Ohm |
| Supplier Device Package | 25-Flexiwatt (Vertical) |
| Grade | Automotive |
