STMUX3040QTTR

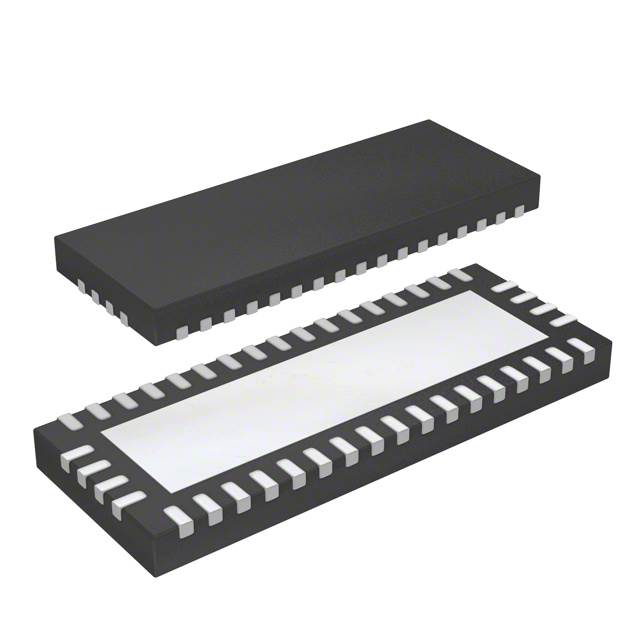

IC SWITCH SPDT X 8 8OHM 42TQFNManufacturer: STMicroelectronics
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The STMicroelectronics STMUX3040QTTR is an 8-circuit, 2:1 multiplexer/demultiplexer featuring SPDT switching. This component offers an on-state resistance of 8 Ohms maximum and exhibits excellent channel-to-channel matching with a Delta Ron of 500 mOhms. With a -3dB bandwidth of 1.3GHz and crosstalk of -30dB at 300MHz, it is well-suited for high-frequency applications. The device operates from a single supply voltage ranging from 1.65V to 3.6V and has a channel capacitance of 4pF. Switching times are rated at 9ns for turn-on and 8.5ns for turn-off. Packaged in a 42-TQFN-EP (3.5x9) for surface mounting, it is supplied on tape and reel. This device finds application in various industries including consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 42-TQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 8Ohm |
| -3db Bandwidth | 1.3GHz |
| Supplier Device Package | 42-TQFN-EP (3.5x9) |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -30dB @ 300MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 500mOhm |
| Switch Time (Ton, Toff) (Max) | 9ns, 8.5ns |
| Channel Capacitance (CS(off), CD(off)) | 4pF |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 8 |
