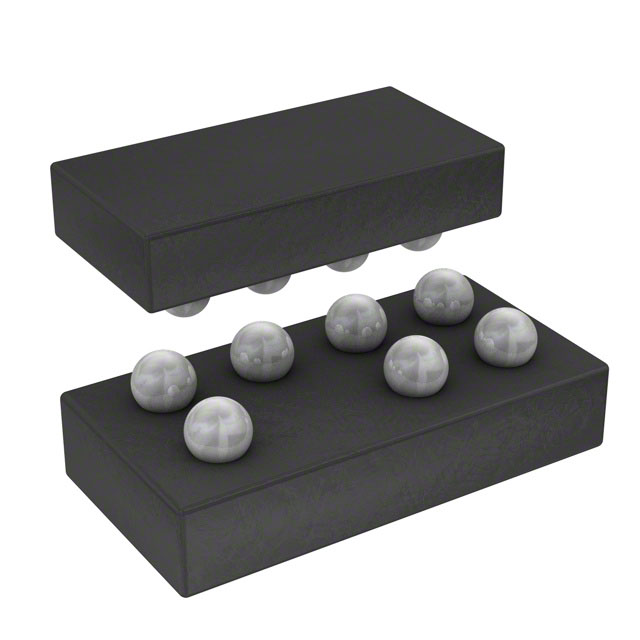

STG4159BJR
IC SW SPDTX1 300MOHM 7FLIPCHIPManufacturer: STMicroelectronics
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
This STMicroelectronics SPDT analog switch, part number STG4159BJR, offers a 2:1 multiplexer/demultiplexer configuration with a maximum on-state resistance of 300mOhm. Designed for single-supply operation from 1.65V to 4.8V, this component features a low channel capacitance of 30pF and a channel-to-channel resistance matching of 3mOhm. The device exhibits a -3dB bandwidth of 28MHz and a charge injection of 140pC, with crosstalk rated at -69dB at 100kHz. Leakage current (IS(off)) is a maximum of 30nA. Switching times are specified at 38ns (Ton) and 17ns (Toff). The STG4159BJR is housed in a compact 7-FlipChip package, suitable for surface mount applications. This component finds utility in various electronic systems, including consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 7-WFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 300mOhm |
| -3db Bandwidth | 28MHz |
| Supplier Device Package | 7-FlipChip |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.8V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 140pC |
| Crosstalk | -69dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 3mOhm |
| Switch Time (Ton, Toff) (Max) | 38ns, 17ns |
| Channel Capacitance (CS(off), CD(off)) | 30pF |
| Current - Leakage (IS(off)) (Max) | 30nA |
| Number of Circuits | 1 |
