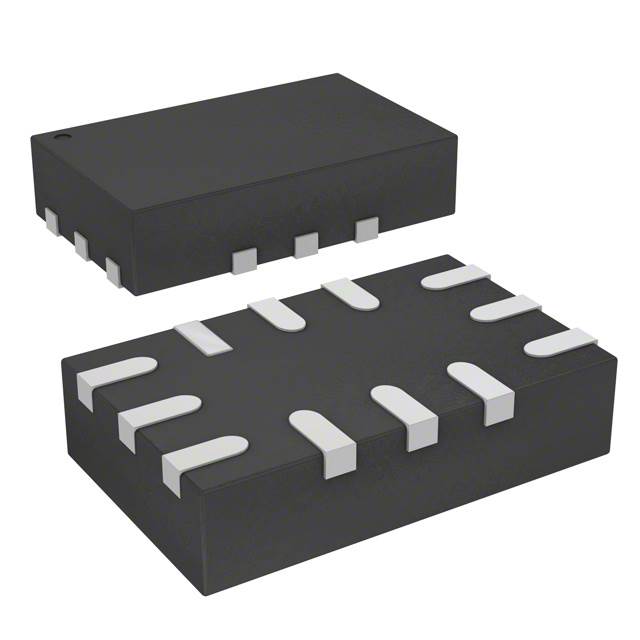

STG3856QTR
IC SWITCH SP3T X 2 1OHM 12QFNManufacturer: STMicroelectronics
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 3:1 1Ohm 12-QFN (2.2x1.4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 1Ohm |
| -3db Bandwidth | 100MHz |
| Supplier Device Package | 12-QFN (2.2x1.4) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 55pC |
| Crosstalk | -84dB @ 100kHz |
| Switch Circuit | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 10mOhm |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Number of Circuits | 2 |
Request a Quote
