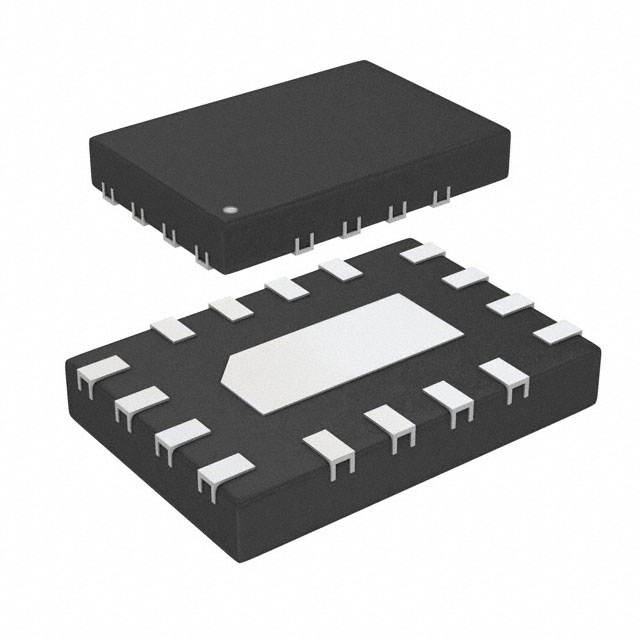

STG3693QTR
IC SWITCH SPDT X 4 5.2OHM 16QFNManufacturer: STMicroelectronics
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 2:1 5.2Ohm 16-QFN (2.6x1.8)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 5.2Ohm |
| -3db Bandwidth | 800MHz |
| Supplier Device Package | 16-QFN (2.6x1.8) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 5pC |
| Crosstalk | -78dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 300mOhm |
| Switch Time (Ton, Toff) (Max) | 15ns, 5ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Number of Circuits | 4 |
Request a Quote
