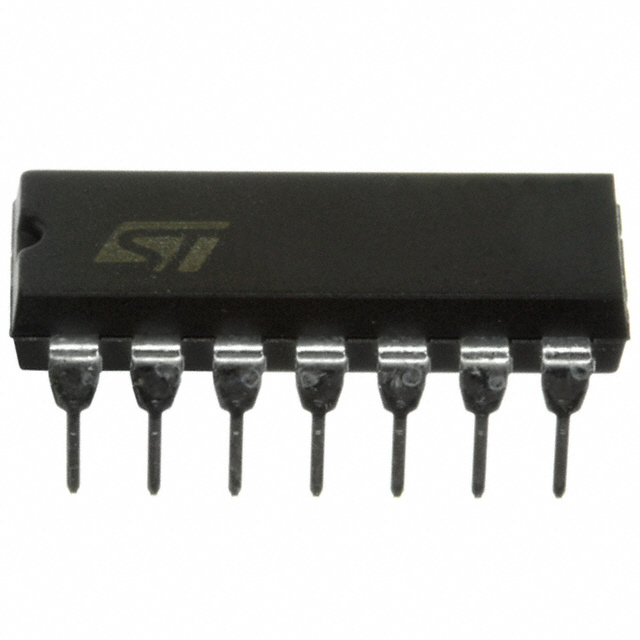

M74HC4016B1R
IC SWITCH SPST-NOX4 120OHM 14DIPManufacturer: STMicroelectronics
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The STMicroelectronics M74HC4016B1R is a high-speed CMOS Quad SPST Analog Switch. This device features four independent switches, each with a 1:1 multiplexer/demultiplexer configuration. The on-state resistance is a maximum of 120 Ohms, with channel-to-channel matching (?Ron) of 6 Ohms. The -3dB bandwidth reaches 42MHz, and crosstalk is specified at -50dB at 1MHz. Leakage current (IS(off)) is kept below 100nA, and channel capacitance is 1pF (CS(off)) and 5pF (CD(off)). Switching times are a maximum of 14ns for turn-on and 24ns for turn-off. This component operates from a single supply voltage between 2V and 12V, with an extended operating temperature range of -55°C to 125°C. The M74HC4016B1R is supplied in a 14-DIP package and is suitable for applications in consumer electronics, industrial control, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.279"", 7.10mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 120Ohm |
| -3db Bandwidth | 42MHz |
| Supplier Device Package | 14-DIP |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -50dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 6Ohm |
| Switch Time (Ton, Toff) (Max) | 14ns, 24ns |
| Channel Capacitance (CS(off), CD(off)) | 1pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 4 |
