VIPER53SP
IC OFFLINE SW FLBACK 10POWERSOManufacturer: STMicroelectronics
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
STMicroelectronics VIPER™ VIPER53SP is a high-performance offline flyback controller designed for AC/DC conversion applications. This device integrates a high-voltage power MOSFET, operating up to 300kHz, enabling compact and efficient power supply designs. Key features include internal soft-start, advanced frequency control, and robust fault protection mechanisms such as over-current, over-load, over-temperature, and short-circuit protection. The VIPER53SP utilizes a flyback topology with isolated output, suitable for power levels up to 65W. It operates from a Vcc range of 8.4V to 19V, with a start-up voltage of 11.5V and a breakdown voltage of 620V. The component is housed in a 10-PowerSO package with an exposed bottom pad for enhanced thermal management and is supplied in tubes. Its capabilities make it a preferred choice for consumer electronics, industrial automation, and lighting applications.
Additional Information
Series: VIPER™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

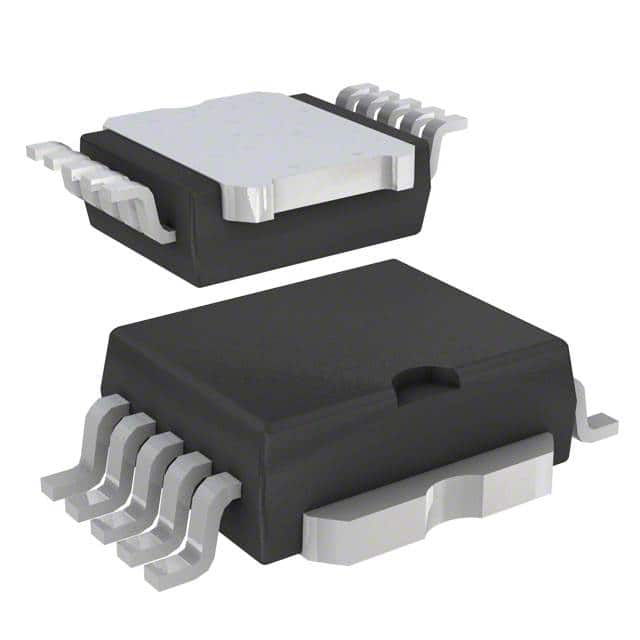

| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TC) |
| Duty Cycle | - |
| Frequency - Switching | Up to 300kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 620V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 19V |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Short Circuit |
| Voltage - Start Up | 11.5 V |
| Control Features | EN, Frequency Control, Soft Start |
| Power (Watts) | 65 W |
