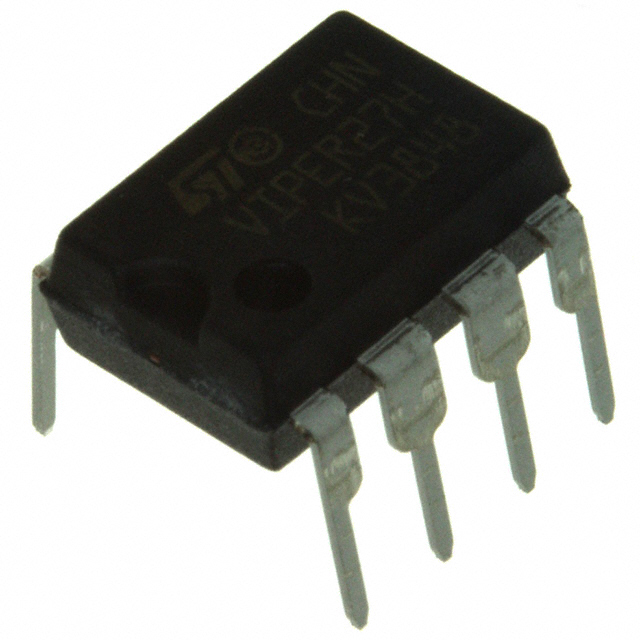

VIPER15LN
IC OFFLINE SWITCH FLYBACK 7DIPManufacturer: STMicroelectronics
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The STMicroelectronics VIPER15LN is an 800V offline switching regulator IC from the VIPer™ plus series. This 7-pin DIP component operates at a 136kHz switching frequency, facilitating efficient flyback converter designs. It integrates an internal 800V power MOSFET, simplifying external circuitry and board space. Key features include robust protection mechanisms such as current limiting, over-temperature, and over-voltage protection, ensuring reliable operation. The VIPER15LN is suitable for applications requiring up to 10W output power and an isolated output. It operates within a wide junction temperature range of -40°C to 150°C. This device is commonly utilized in consumer electronics, industrial power supplies, and lighting applications.
Additional Information
Series: VIPer™ plusRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | - |
| Frequency - Switching | 136kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 23.5V |
| Supplier Device Package | 7-DIP |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Voltage - Start Up | 14 V |
| Control Features | - |
| Power (Watts) | 10 W |
