VIPER100A-E
IC OFFLIN CONV FLBACK 5PENTAWATTManufacturer: STMicroelectronics
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More

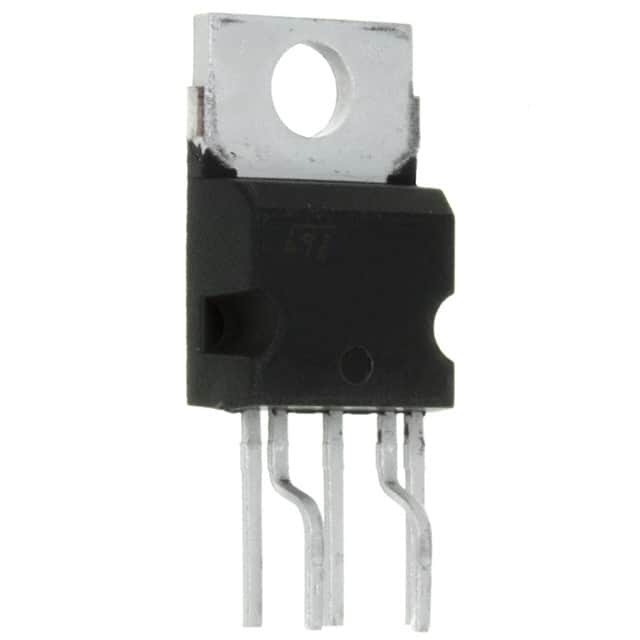

The STMicroelectronics VIPER™ VIPER100A-E is an offline flyback converter IC. This component is designed for high-voltage applications, featuring a 700V breakdown voltage and supporting a switching frequency up to 200kHz. It integrates a power MOSFET with current limiting and over-temperature fault protection, enhancing system reliability. Operating within an 8V to 15V supply range, the VIPER100A-E offers essential control features including enable functionality, frequency control, and soft-start. Its 5-PENTAWATT HV package with bent and staggered leads is suitable for surface mount applications. This device is widely utilized in power supply solutions for consumer electronics, industrial automation, and lighting control systems.
Additional Information
Series: VIPER™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Pentawatt-5 HV (Bent and Staggered Leads) |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Duty Cycle | - |
| Frequency - Switching | Up to 200kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Supplier Device Package | 5-PENTAWATT |
| Fault Protection | Current Limiting, Over Temperature |
| Voltage - Start Up | 11 V |
| Control Features | EN, Frequency Control, Soft Start |
| Power (Watts) | 100 W |
