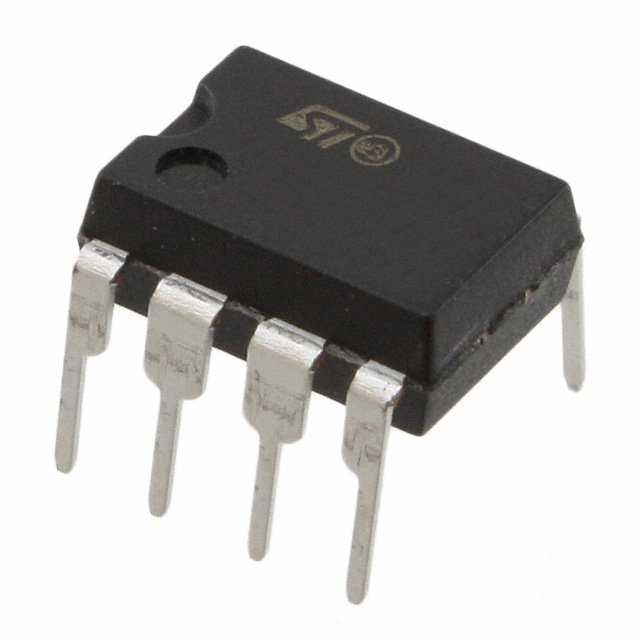

VIPER06XN
IC OFFLINE SWITCH MULT TOP 7DIPManufacturer: STMicroelectronics
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Buck, Flyback Topology 30kHz 7-DIP
Additional Information
Series: VIPer™ plusRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 70% |
| Frequency - Switching | 30kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Output Isolation | Either |
| Topology | Buck, Flyback |
| Voltage - Supply (Vcc/Vdd) | 11.5V ~ 23.5V |
| Supplier Device Package | 7-DIP |
| Fault Protection | Current Limiting, Open Loop, Over Temperature |
| Voltage - Start Up | 13 V |
| Control Features | - |
| Power (Watts) | 8 W |
Request a Quote
