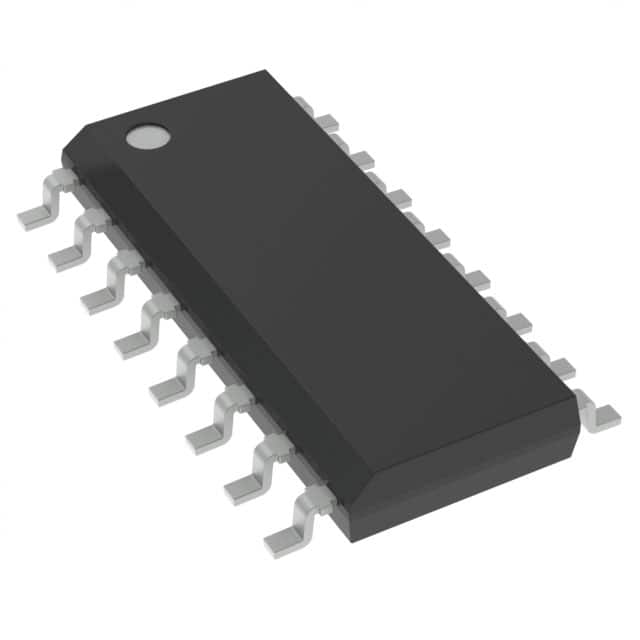

L6566BH
IC OFFLINE SWITCH FLYBACK 16SOManufacturer: STMicroelectronics
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 10kHz ~ 300kHz 16-SO
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 75% |
| Frequency - Switching | 10kHz ~ 300kHz |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 23V |
| Supplier Device Package | 16-SO |
| Fault Protection | Current Limiting, Over Load |
| Voltage - Start Up | 14 V |
| Control Features | Soft Start |
