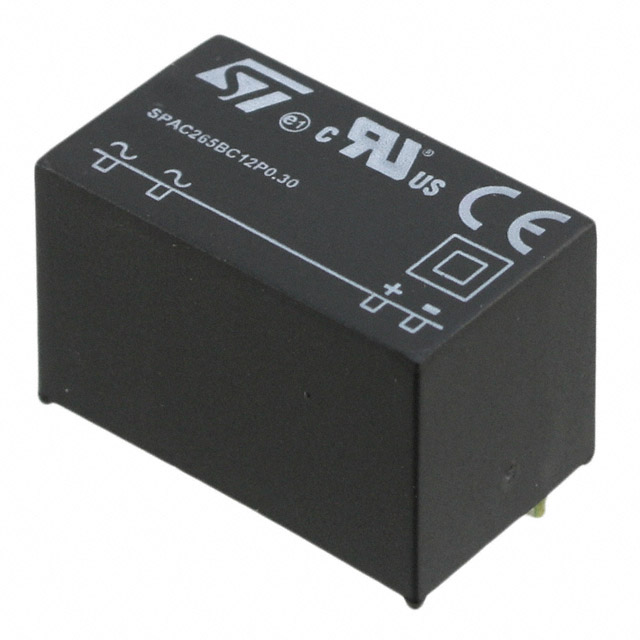

SPAC265BC12P0.30
AC/DC CONVERTER 12V 3WManufacturer: STMicroelectronics
Categories: AC DC Converters
Quality Control: Learn More
STMicroelectronics SPAC265BC12P0-30 is a 3W enclosed AC/DC converter with a single 12V output. This component provides 250mA at 12V and operates across a wide input voltage range of 90 to 264 VAC. Designed with an efficiency of 80%, it features Short Circuit Protection (SCP) for enhanced reliability. The SPAC265-3W series converter is packaged in a 4-SIP module for through-hole mounting. Its dimensions are 1.38 inches (35.0mm) in length, 0.79 inches (20.0mm) in width, and 0.87 inches (22.0mm) in height. This component is suitable for Information Technology Equipment (ITE) applications and holds CSA, EN, and UL approvals. The operating temperature range is -40°C to 85°C.
Additional Information
Series: SPAC265-3W (3W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Size / Dimension | 1.38"" L x 0.79"" W x 0.87"" H (35.0mm x 20.0mm x 22.0mm) |
| Mounting Type | Through Hole |
| Voltage - Input | 90 ~ 264 VAC |
| Type | Enclosed |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Approval Agency | CSA, EN, UL |
| Efficiency | 80% |
| Current - Output (Max) | 250mA |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Power (Watts) | 3 W |
| Number of Outputs | 1 |
