YPY3863X
LED YLW-GRN CLEAR T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

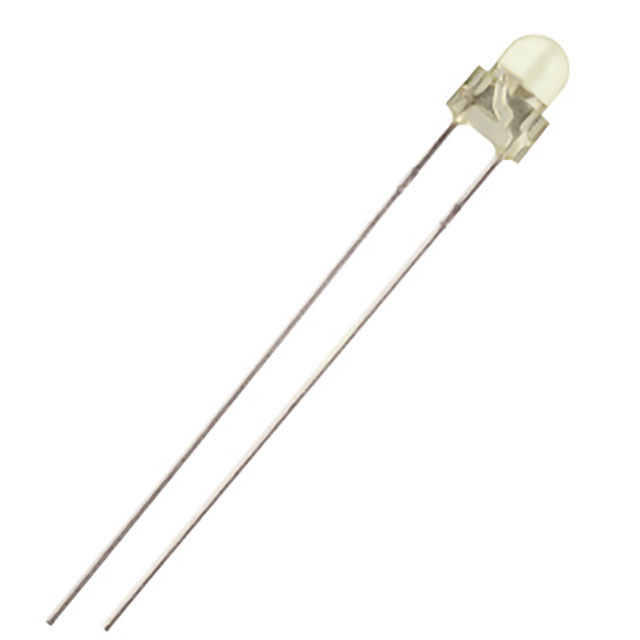

Stanley Electric Co. 3863X series Yellow-Green through-hole LED (YPY3863X). This discrete indicator features a clear, domed lens with a 3.10mm diameter, providing a 40° viewing angle. The component operates at a typical forward voltage of 2.1V and exhibits a dominant wavelength of 572nm, with a peak wavelength at 575nm. Rated at 360mcd millicandela at a test current of 20mA, this LED is suitable for general indication applications across various industrial sectors. The radial package is supplied in bulk.
Additional Information
Series: 3863XRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow-Green |
| Size / Dimension | 3.10mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 360mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Height (Max) | 6.40mm |
| Wavelength - Peak | 575nm |
| Wavelength - Dominant | 572nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.10mm Dia |
