VRPG3312X
LED GREEN/RED DIFFUSED T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

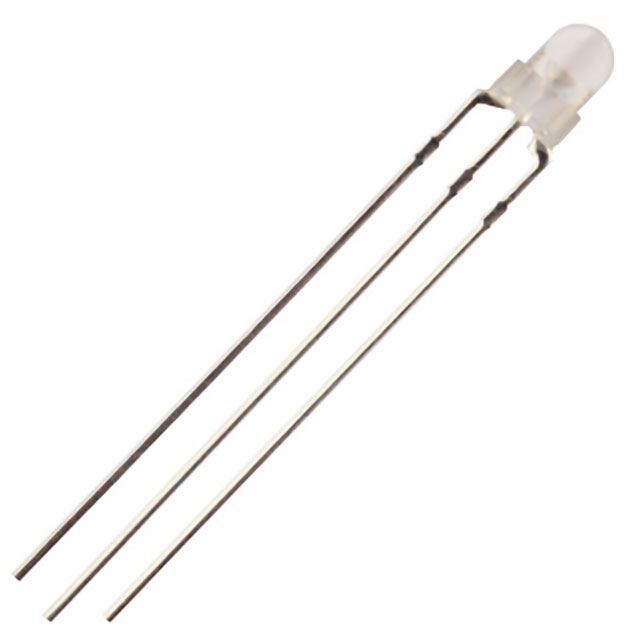

Stanley Electric Co. VRPG3312X is a Through Hole, radial-mount LED component from the 3312X series, featuring a dual-color output of Green (567nm dominant, 560nm peak) and Red (624nm dominant, 630nm peak). This diffused, round-domed lens component operates with a typical forward voltage of 2.1V for green and 2V for red at a test current of 20mA for both colors. The millicandela ratings are 12mcd for green and 8mcd for red, with viewing angles of 68° for green and 59° for red. Configuration is common cathode. This component is suitable for indication applications across various industries including industrial automation and consumer electronics. Packaging is bulk.
Additional Information
Series: 3312XRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 3 Leads |
| Color | Green, Red |
| Size / Dimension | 3.10mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 12mcd Green, 8mcd Red |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Lens Color | White |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 68°, 59° |
| Height (Max) | 6.00mm |
| Wavelength - Peak | 560nm Green, 630nm Red |
| Wavelength - Dominant | 567nm Green, 624nm Red |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.10mm Dia |
