VLW1148LS-TR
LED WHITE DIFFUSED 2PLCC SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

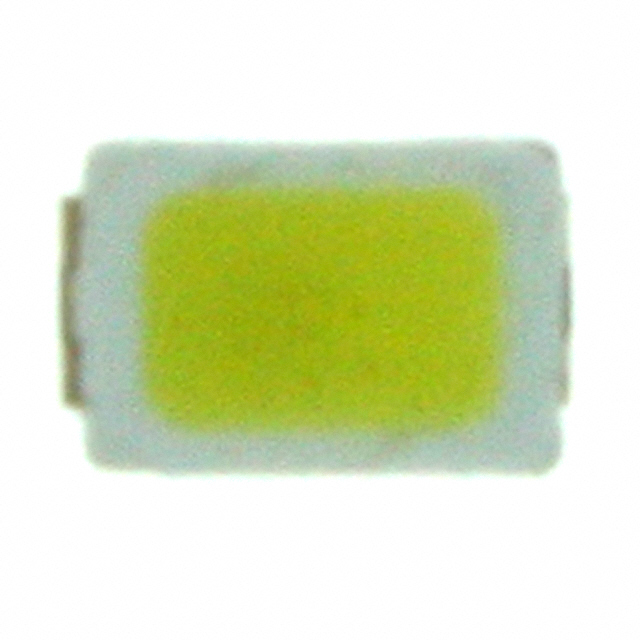

Stanley Electric Co VLW1148LS-TR is a white diffused LED housed in a 2-PLCC package, designed for surface mount applications. This discrete LED provides a typical forward voltage of 3.1V and operates at a test current of 10mA, achieving a luminous intensity of 100mcd. The LED features a diffused yellow lens with a flat-top rectangular profile, offering a wide viewing angle of 120 degrees. Its dimensions are 2.00mm in length and 1.40mm in width. This component is commonly utilized in industrial automation, medical devices, and consumer electronics for indication purposes. The VLW1148LS-TR is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | White |
| Size / Dimension | 2.00mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Lens Color | Yellow |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 1.40mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
