VCEW1158LDS-TR
LED WHITE DIFFUSED 2PLCC SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

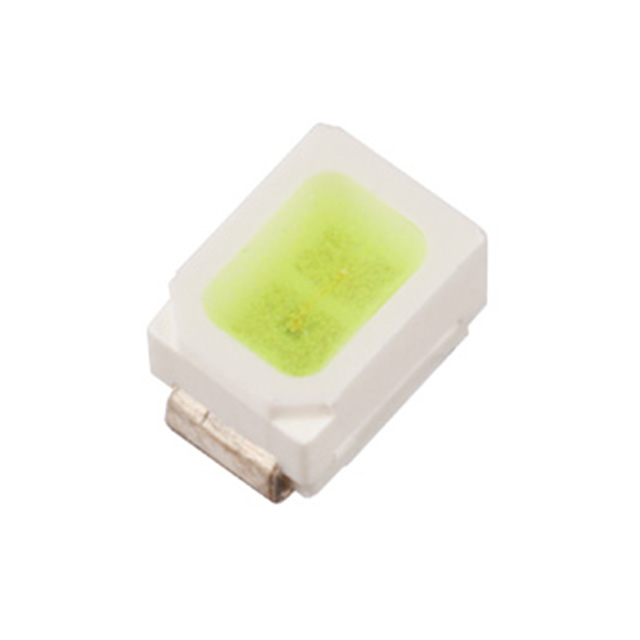

Stanley Electric Co VCEW1158LDS-TR is a diffused white LED designed for surface mount applications. This component, housed in a 2-PLCC package, offers a typical forward voltage of 3.1V at a test current of 10mA. The LED features a diffused lens for uniform illumination and provides wide viewing angles of 120° in both axes. Its compact dimensions of 2.00mm L x 1.40mm W make it suitable for space-constrained designs. This LED is commonly employed in industrial automation, consumer electronics, and medical equipment for status indication and general lighting purposes. The VCEW1158LDS-TR is supplied in a Tape & Reel (TR) package for automated assembly processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | White |
| Size / Dimension | 2.00mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Lens Color | Yellow |
| Current - Test | 10mA |
| Viewing Angle | 120°, 120° |
| Height (Max) | 1.40mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Oval with Flat Top |
| Lens Size | - |
