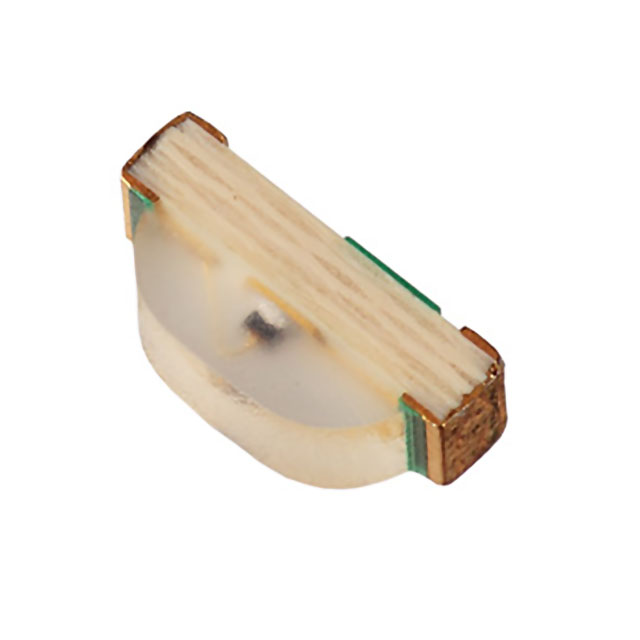

VCDG1113F-4BY3C-TR
LED GREEN 2SMD R/AManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More
Green 530nm LED Indication - Discrete 3V 2-SMD, No Lead
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Green |
| Size / Dimension | 2.10mm L x 1.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | White |
| Current - Test | 5mA |
| Viewing Angle | 170° |
| Height (Max) | 0.70mm |
| Wavelength - Peak | 522nm |
| Wavelength - Dominant | 530nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | - |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 1.70mm x 0.60mm |
