UG1105W-TR
LED GREEN CLEAR SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

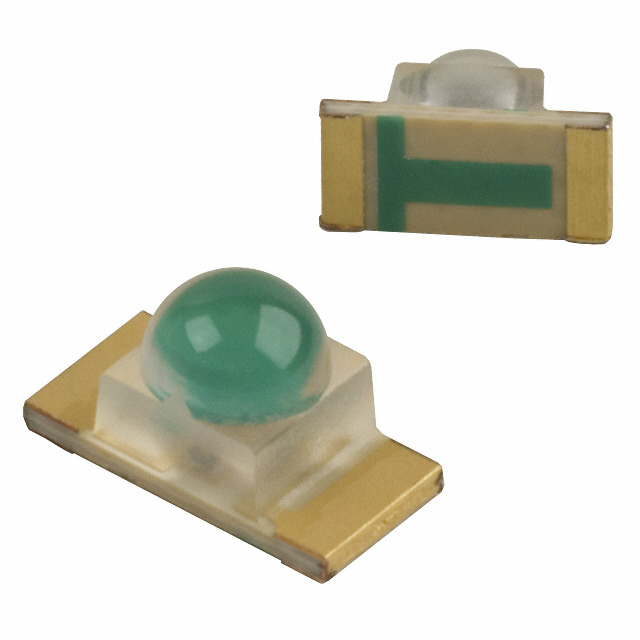

Stanley Electric Co. UG1105W-TR is a green, clear surface-mount LED designed for indication applications. This discrete component operates with a typical forward voltage of 3.3V and a test current of 10mA, producing a dominant wavelength of 525nm and a peak wavelength of 522nm. It features a round, domed top lens with a colorless appearance and a millicandela rating of 1000mcd. The LED is housed in a 1206 (3216 Metric) package, measuring 3.20mm in length and 1.60mm in width, with a maximum height of 1.85mm. This component is supplied on a Tape & Reel (TR) for automated assembly. It finds application in various industries including industrial automation, consumer electronics, and telecommunications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.85mm |
| Wavelength - Peak | 522nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.60mm Dia |
