THB3809X
LED BLUE CLEAR T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

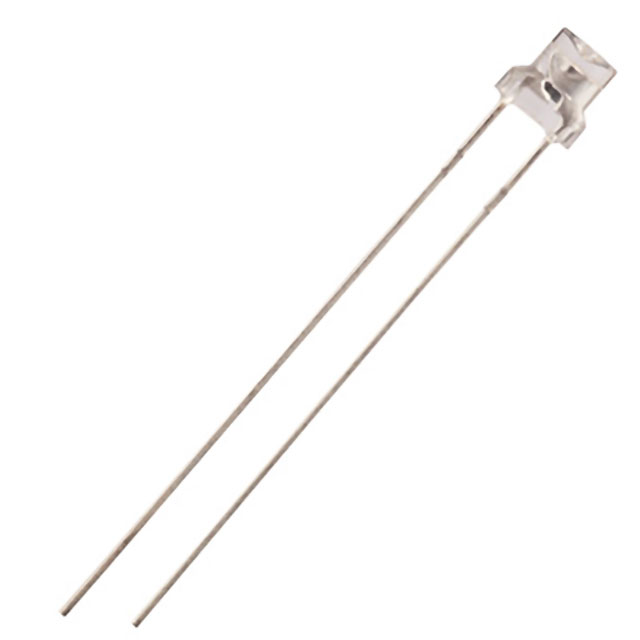

Stanley Electric Co THB3809X is a through-hole mounted blue LED with a peak wavelength of 465nm and a dominant wavelength of 470nm. This discrete component offers a forward voltage of 3V (typical) and a forward current of 5mA for testing. It features a clear, colorless lens with a round, flat-top profile, measuring 3mm (T-1) in diameter. The THB3809X provides a typical luminous intensity of 75mcd and has a wide viewing angle of 90° by 90°. It is supplied in bulk packaging. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for indication purposes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 75mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | Colorless |
| Current - Test | 5mA |
| Viewing Angle | 90°, 90° |
| Height (Max) | 4.60mm |
| Wavelength - Peak | 465nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 3mm, T-1 |
