THB3801C
LED BLUE CLEAR T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

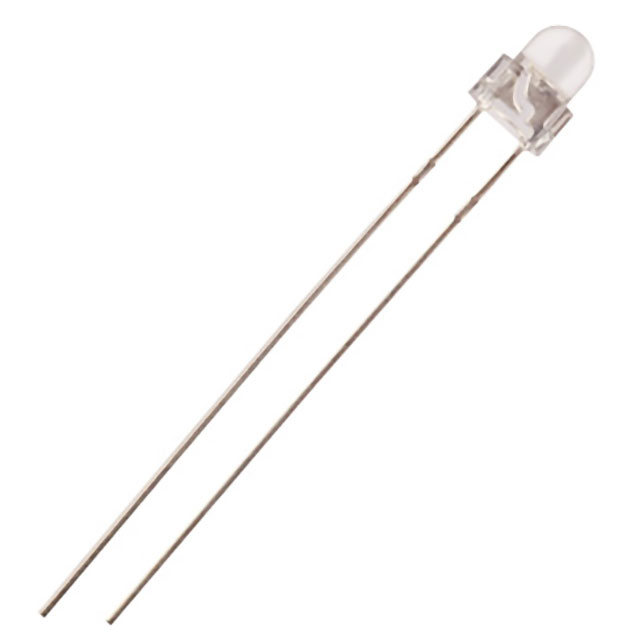

Stanley Electric Co. THB3801C is a blue, through-hole mounted LED with a dominant wavelength of 470nm and a peak wavelength of 465nm. This discrete component features a clear, colorless lens with a domed top, measuring 3mm (T-1) in diameter. It is designed for indication applications, exhibiting a typical forward voltage of 3V and a test current of 5mA, achieving a luminous intensity of 1200mcd. The viewing angle is rated at 15° for both axes. This component is suitable for use in industrial automation, consumer electronics, and telecommunications equipment. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | Colorless |
| Current - Test | 5mA |
| Viewing Angle | 15°, 15° |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 465nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
