STW1147ASE-TR
LED WHITE DIFFUSEDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

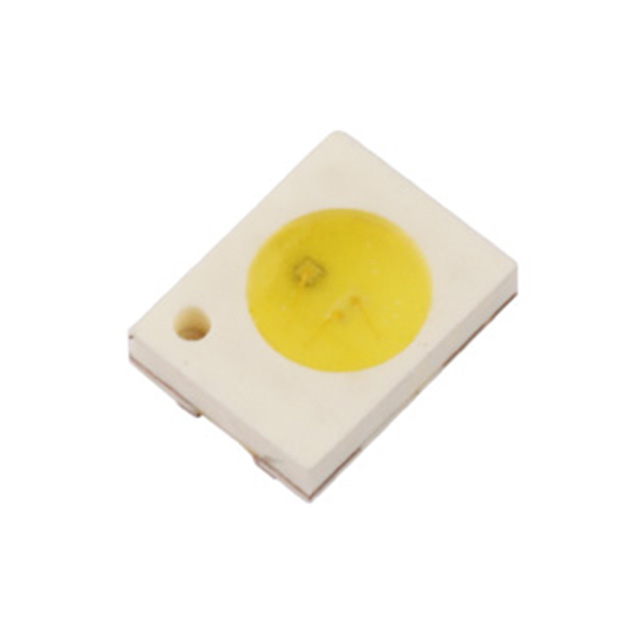

Stanley Electric Co STW1147ASE-TR is a white diffused LED designed for surface mount applications. This discrete indicator component features a 2-SMD, No Lead package with dimensions of 2.40mm L x 1.85mm W and a maximum height of 0.70mm. It operates with a typical forward voltage of 3.2V at a test current of 20mA, producing a luminous intensity of 2000mcd. The LED has a wide viewing angle of 120° and a diffused lens for uniform light distribution. The lens color is yellow, contributing to the white light output. This component is commonly utilized in industrial automation, automotive lighting, and consumer electronics for status indication. The STW1147ASE-TR is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | White |
| Size / Dimension | 2.40mm L x 1.85mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 0.70mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 1.45mm Dia |
