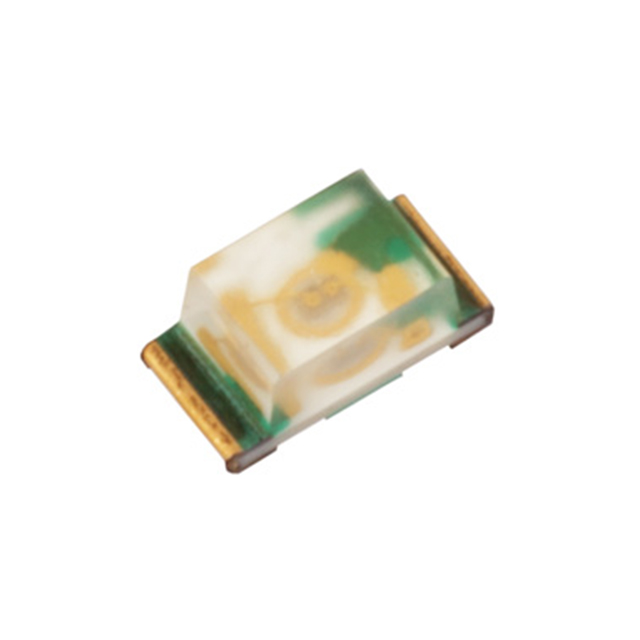

SG1111C-2405-TR
LED GREEN DIFFUSED 1608 SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More
Stanley Electric Co SG1111C-2405-TR is a green diffused LED designed for discrete indication. This component features a dominant wavelength of 530nm and a peak wavelength of 525nm, with a typical forward voltage of 3V and a test current of 5mA producing a millicandela rating of 90mcd. The LED is housed in a 0603 (1608 Metric) surface mount package with dimensions of 1.60mm L x 0.80mm W and a maximum height of 0.80mm. It has a diffused lens that is white in color, measuring 1.10mm x 0.80mm, and offers a wide viewing angle of 140°. This component is supplied on a tape and reel (TR) for automated assembly, commonly utilized in industrial and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Green |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 90mcd |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | White |
| Current - Test | 5mA |
| Viewing Angle | 140° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 525nm |
| Wavelength - Dominant | 530nm |
| Supplier Device Package | 1608 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
