RPG1111C-11-TR
LED GREEN DIFFUSED SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

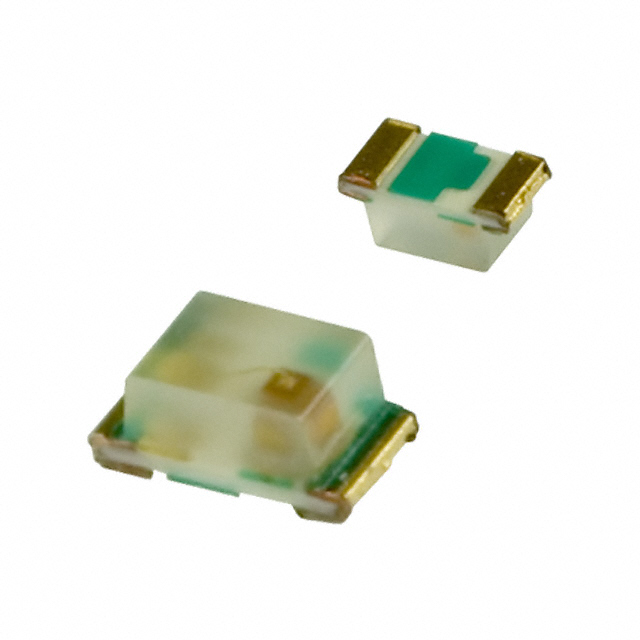

Stanley Electric Co RPG1111C-11-TR is a green diffused SMD LED for indication applications. This discrete component features a forward voltage of 2.1V typical and a dominant wavelength of 567nm. The 0603 (1608 Metric) package offers a compact footprint with dimensions of 1.60mm L x 0.80mm W and a maximum height of 0.80mm. It is supplied on tape and reel for efficient automated assembly. This LED is suitable for various applications including consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Green |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 9.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Clear |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 560nm |
| Wavelength - Dominant | 567nm |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
