RPG1102W-660-TR
LED GREEN CLEAR SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

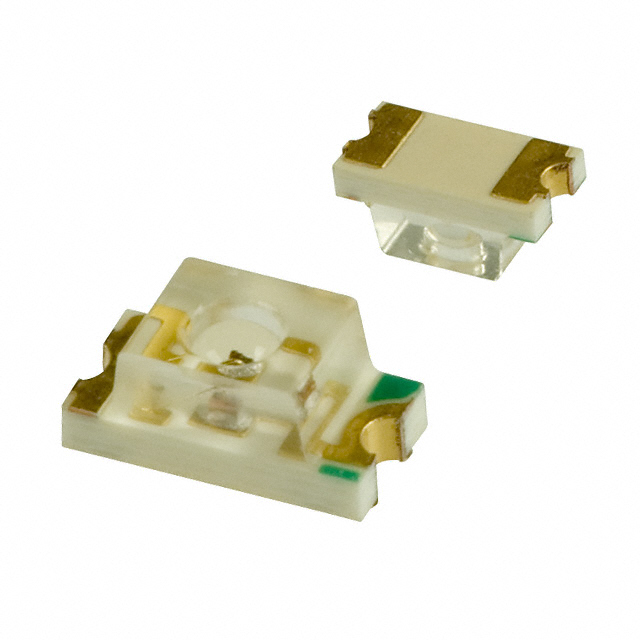

Stanley Electric Co. RPG1102W-660-TR is a green, surface-mount LED with a clear lens. This discrete component operates with a typical forward voltage of 2.1V and a forward current of 20mA, emitting light with a dominant wavelength of 567nm and a peak wavelength of 560nm. The component is housed in a 1206 (3016 Metric) package, measuring 3.00mm in length and 1.50mm in width, with a lens size of 2.00mm x 1.50mm. It provides a millicandela rating of 33mcd and is supplied on a Tape & Reel (TR) for automated assembly. This LED is suitable for various indication applications across industries including consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3016 Metric) |
| Color | Green |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 33mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Clear |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 1.50mm |
| Wavelength - Peak | 560nm |
| Wavelength - Dominant | 567nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.50mm |
