PY1105CK-TR
LED GREEN CLR WIDE ANGLE LED SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

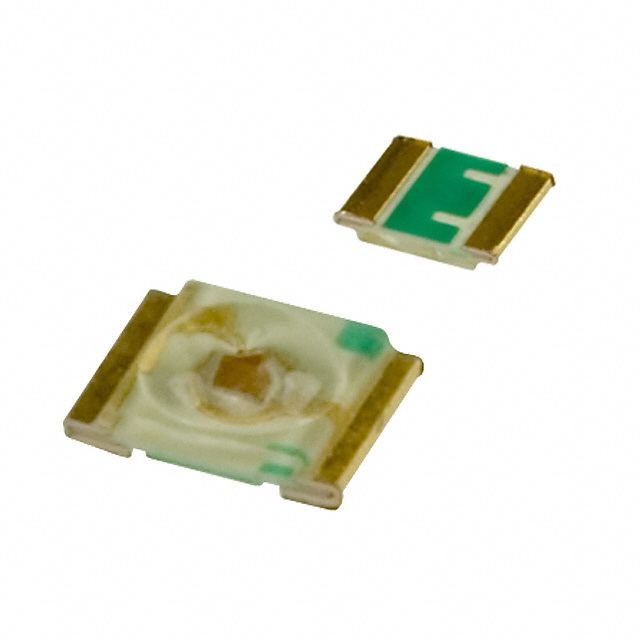

Stanley Electric Co PY1105CK-TR is a green, clear lens, wide-angle surface mount LED designed for indication applications. This discrete component features a 572nm dominant wavelength and a 2.1V typical forward voltage. The 0605 (1613 Metric) package measures 1.60mm L x 1.25mm W with a maximum height of 0.60mm. It offers a wide viewing angle of 180° in both horizontal and vertical planes, with a typical millicandela rating of 8mcd at 10mA test current. The colorless lens is clear and features a round with flat top style. This component is supplied in tape and reel packaging. It finds application in automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0605 (1613 Metric) |
| Color | Green |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | 180°, 180° |
| Height (Max) | 0.60mm |
| Wavelength - Peak | 570nm |
| Wavelength - Dominant | 572nm |
| Supplier Device Package | Wide Angle Type LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 1.15mm Dia |
