PG1111R-TR
LED GREEN DIFF 3216 SMD BOT ENTManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

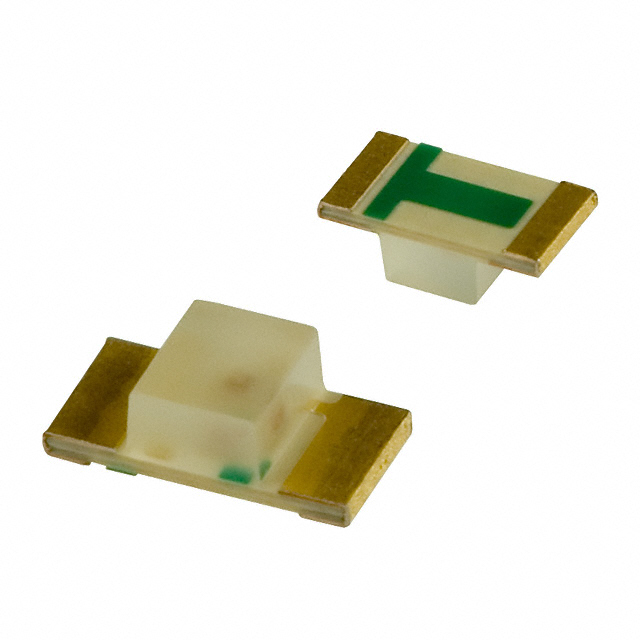

Stanley Electric Co. 1111R Series Green LED, part number PG1111R-TR. This diffused, surface-mount LED features a 567nm dominant wavelength and a peak wavelength of 560nm, providing clear green indication. Housed in a 1206 (3216 Metric) package with bottom entry mounting, it measures 3.20mm L x 1.60mm W with a maximum height of 1.30mm. The lens is white and diffused, with a rectangular flat-top style measuring 1.40mm x 1.60mm. Typical forward voltage is 2.1V at a test current of 20mA, yielding a millicandela rating of 6.9mcd. Viewing angles are 145° and 149°. This component is supplied in tape and reel packaging. Applications include general indication in consumer electronics, industrial control systems, and automotive lighting.
Additional Information
Series: 1111RRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 6.9mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 145°, 149° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 560nm |
| Wavelength - Dominant | 567nm |
| Supplier Device Package | 3216 Type |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.60mm |
