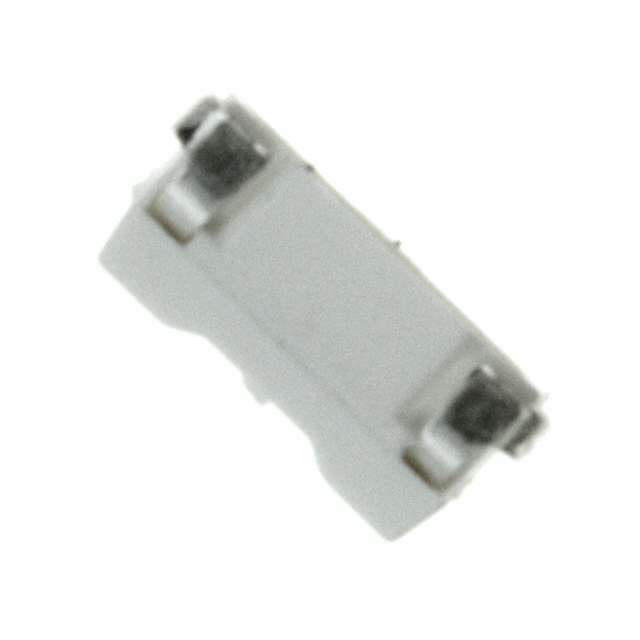

HKW1142LT-TR
LED WHITE DIFFUSED SMD R/AManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More
Stanley Electric Co HKW1142LT-TR is a diffused white LED with a standard configuration designed for surface mount, right-angle applications. This discrete indicator component features a 2-SMD, No Lead package and operates with a typical forward voltage of 3.2V at a test current of 20mA, delivering a high luminous intensity of 1720mcd. The component's dimensions are 2.50mm L x 1.20mm W with a maximum height of 0.90mm. Its yellow lens has a diffused finish for optimal light dispersion, with dimensions of 2.15mm x 0.60mm and a flat-top rectangular shape. The viewing angles are rated at 110° and 105°. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment where reliable visual indication is critical. The HKW1142LT-TR is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | White |
| Size / Dimension | 2.50mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 1720mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 110°, 105° |
| Height (Max) | 0.90mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.15mm x 0.60mm |
