H-3000L
LED RED CLEAR 5MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

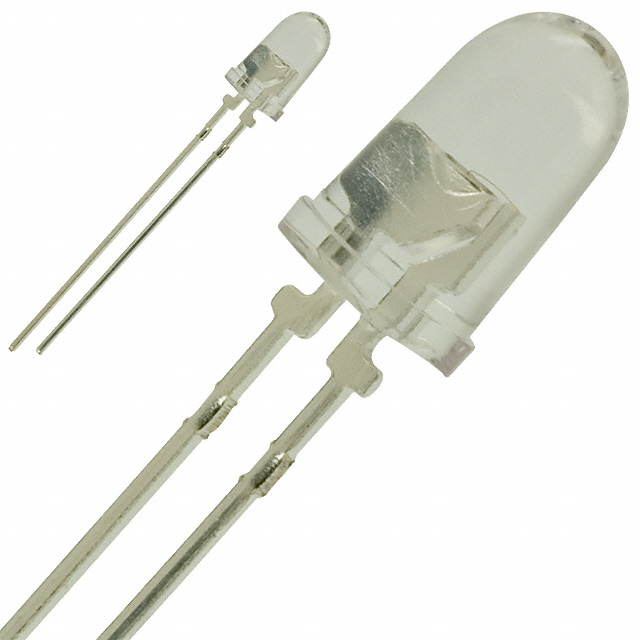

Stanley Electric Co H-3000L is a 5mm, T-1 3/4 clear, colorless lens, round LED with a domed top. Featuring a narrow 10° viewing angle, this through-hole mounted component emits a red light with a dominant wavelength of 647nm and a peak wavelength of 660nm. Tested at 20mA, it provides a typical forward voltage of 1.8V and a high luminous intensity of 3000mcd. This discrete LED is suitable for various indication applications across industrial automation, consumer electronics, and automotive sectors. The H-3000L is supplied in bulk packaging and utilizes a radial package.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 10° |
| Height (Max) | 10.70mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 647nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
