H-2000L
LED RED CLEAR 5MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

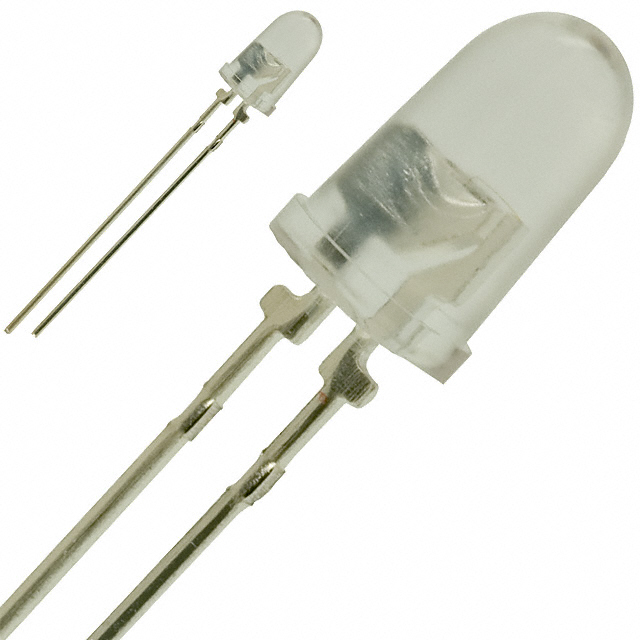

Stanley Electric Co H-2000L is a red, 647nm wavelength discrete LED designed for through-hole mounting. This component features a clear, colorless lens with a 5mm, T-1 3/4 round, domed top profile. It offers a typical forward voltage of 1.8V and a test current of 20mA, yielding a millicandela rating of 2000mcd. The viewing angle is rated at 10°, making it suitable for applications requiring focused illumination. Commonly found in industrial automation, control panels, and diagnostic equipment, this LED is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 10° |
| Height (Max) | 10.70mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 647nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
