GSPW1641NSE-50X-TR
LED COOL WHITE DIFFUSED SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

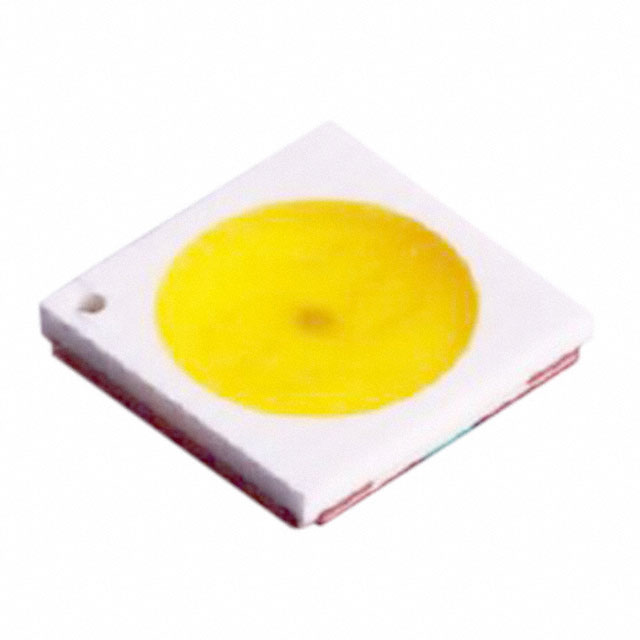

Stanley Electric Co GSPW1641NSE-50X-TR is a cool white diffused LED for indication applications. This Surface Mount device, packaged in a 2-SMD, No Lead configuration, operates with a typical forward voltage of 3V and a test current of 350mA. Its 4.60mm x 4.60mm dimensions and 0.80mm maximum height make it suitable for compact designs. The diffused lens, with a round with flat top style and 3.80mm diameter, provides a wide viewing angle of 115° x 115°. This component is commonly found in automotive, industrial, and consumer electronics sectors. The product is supplied on a Tape & Reel (TR) for efficient automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | White, Cool |
| Size / Dimension | 4.60mm L x 4.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | Orange |
| Current - Test | 350mA |
| Viewing Angle | 115°, 115° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 5000K |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 3.80mm Dia |
