FY3863X
LED YELLOW CLEAR 3MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

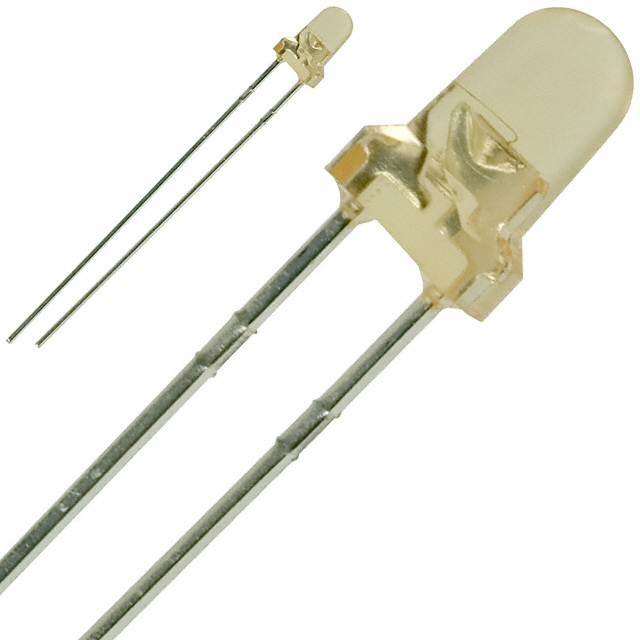

Stanley Electric Co FY3863X is a through-hole mounted, 3mm round, yellow LED designed for clear indication. This discrete component emits light at a dominant wavelength of 590nm with a peak wavelength of 592nm, providing a distinct yellow hue. The forward voltage is typically 1.9V, tested at 20mA, yielding a luminous intensity of 720mcd. The component features a clear, domed lens and is supplied in bulk packaging. Applications for this component are found in industrial automation, consumer electronics, and medical devices where reliable visual feedback is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 720mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 592nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 3mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
