FR5365S
LED RED CLEAR 5MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

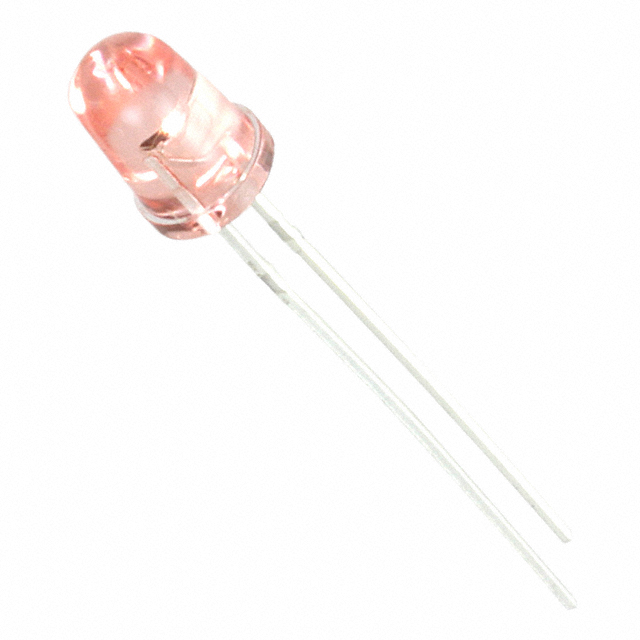

Stanley Electric Co. FR5365S is a high-brightness, red, through-hole LED. This discrete component features a 5mm, T-1 3/4, radial package with a clear lens and a domed top for a 45° viewing angle. It operates at a typical forward voltage of 1.9V and is rated at 440mcd at 20mA test current. The dominant wavelength is 626nm, with a peak wavelength of 635nm, ensuring a vibrant red indication. This component is suitable for various industrial and consumer electronics applications requiring reliable visual feedback, commonly found in control panels, instrumentation, and signaling equipment. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 440mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 45° |
| Height (Max) | 7.80mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
