FR3863X
LED RED CLEAR 3MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

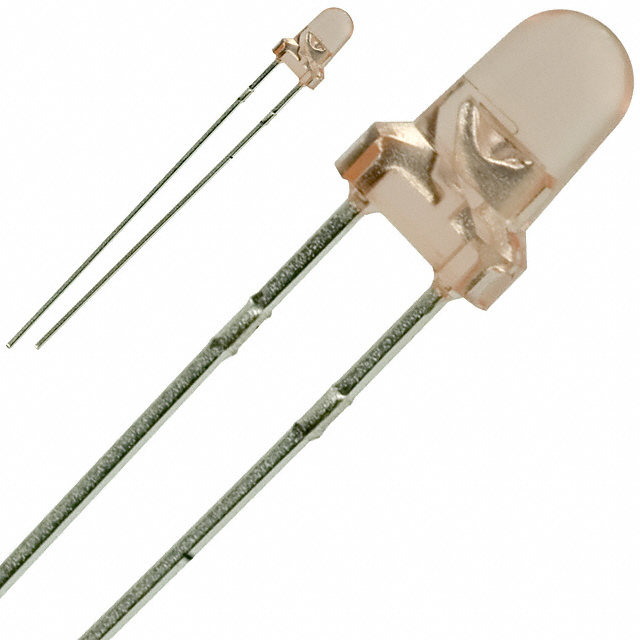

Stanley Electric Co FR3863X is a red, clear lens, 3mm diameter through-hole mounted LED. This discrete indicator utilizes a radial package and features a domed top for consistent light output. The component operates with a typical forward voltage of 1.9V and a test current of 20mA, achieving a millicandela rating of 640mcd. Its dominant wavelength is 626nm, with a peak wavelength of 635nm, providing a distinct red illumination. The viewing angle is rated at 40°. This component is commonly found in industrial automation, consumer electronics, and automotive applications requiring reliable visual indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 640mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | 3mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
